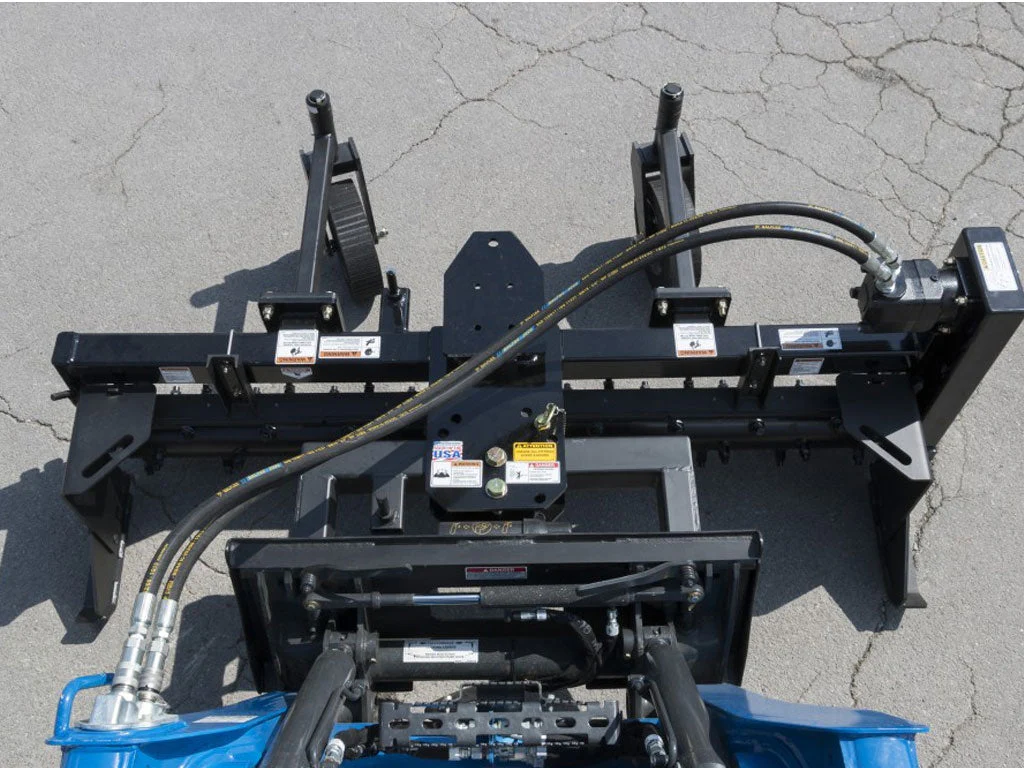

BLUE DIAMOND | EXTREME DUTY POWER RAKE FOR SKID STEER, MANUAL ANGLE

Features

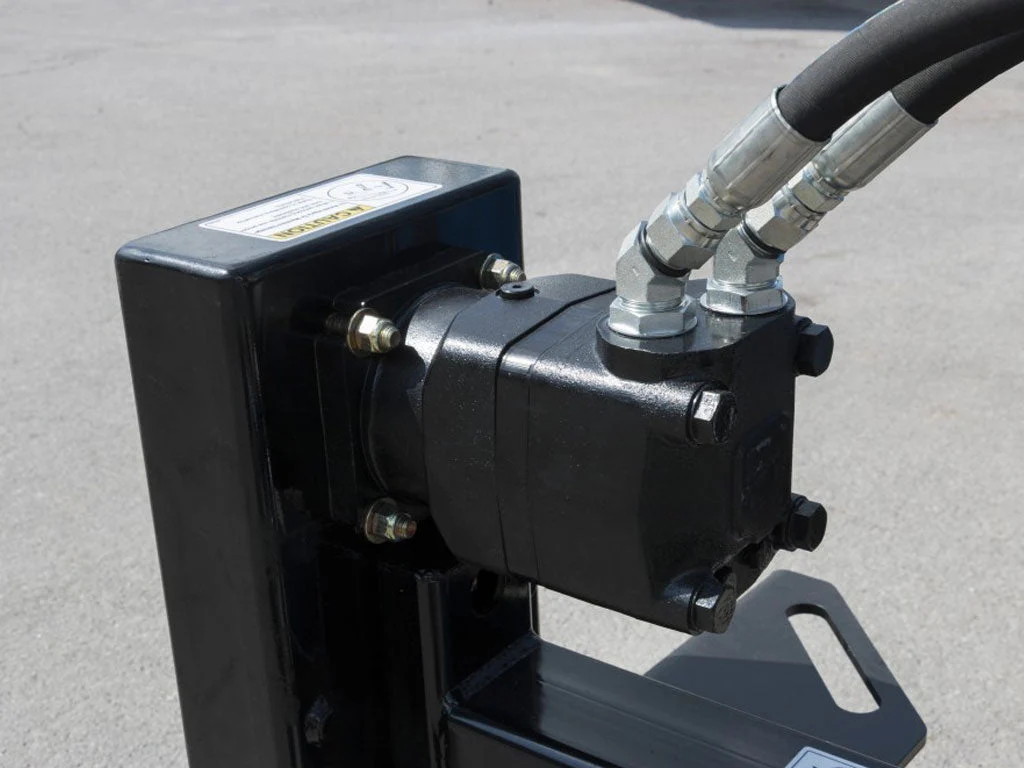

• Massive 6000 series motor delivering around 40% more torque than typical models, with the motor kept out of the way to maximize usable width in tight spaces.
• 4" x 4" square tube frame for rugged durability.

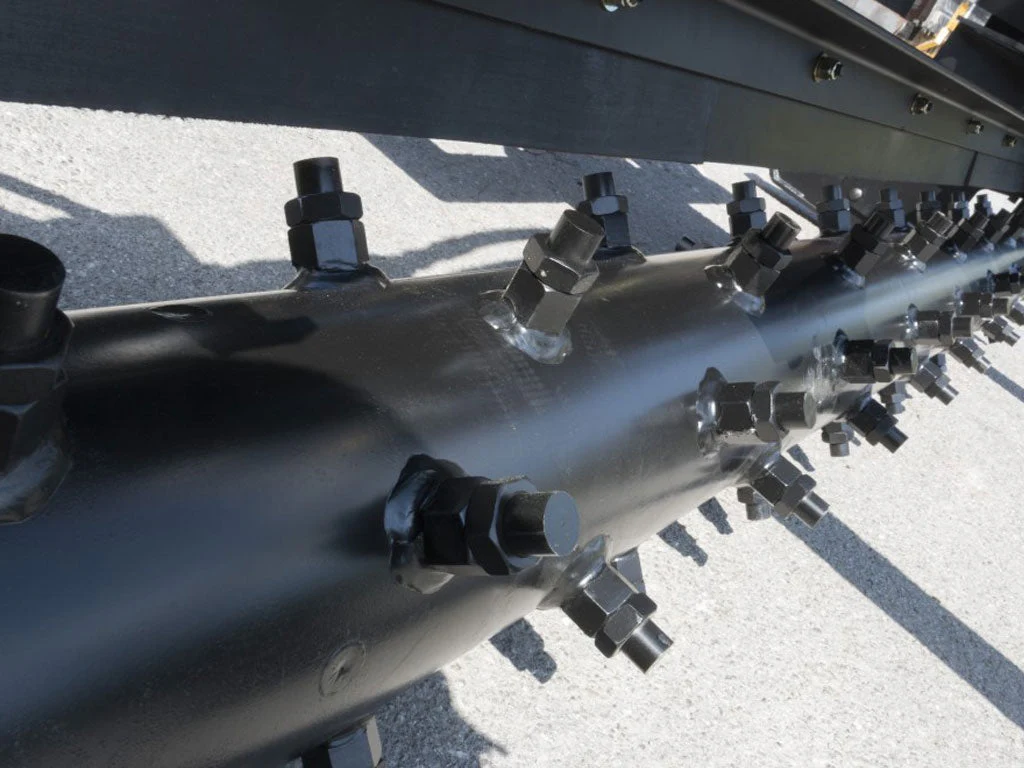

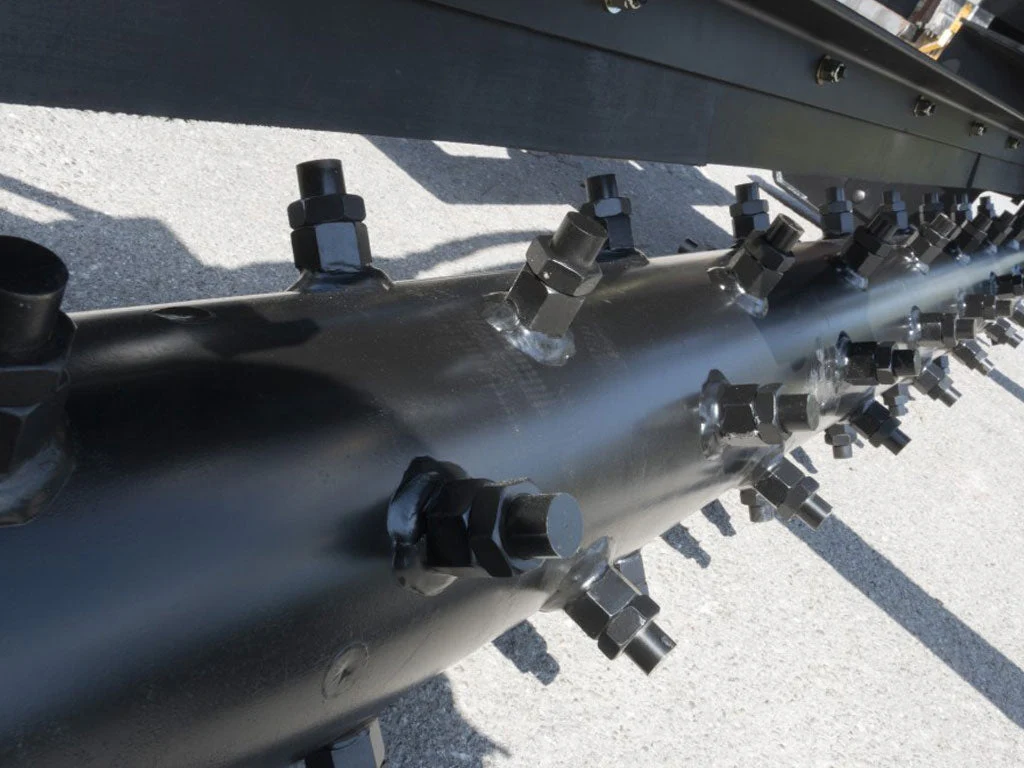

• Drum diameter 6 3/4" (10 3/4" including teeth) with aggressive 2" teeth for faster seed-bed prep and fewer passes.
• Hydraulic compatibility: 18–26 GPM flow, up to 4000 PSI. Over 3,000 PSI requires a case drain.
• Optional replaceable teeth versus fixed teeth that require welding to replace.
• 1.5" spindle on castors with spacers; airless tires for no flats; 1" front wheel axles; 1.5" motor shaft with high-pressure seals.

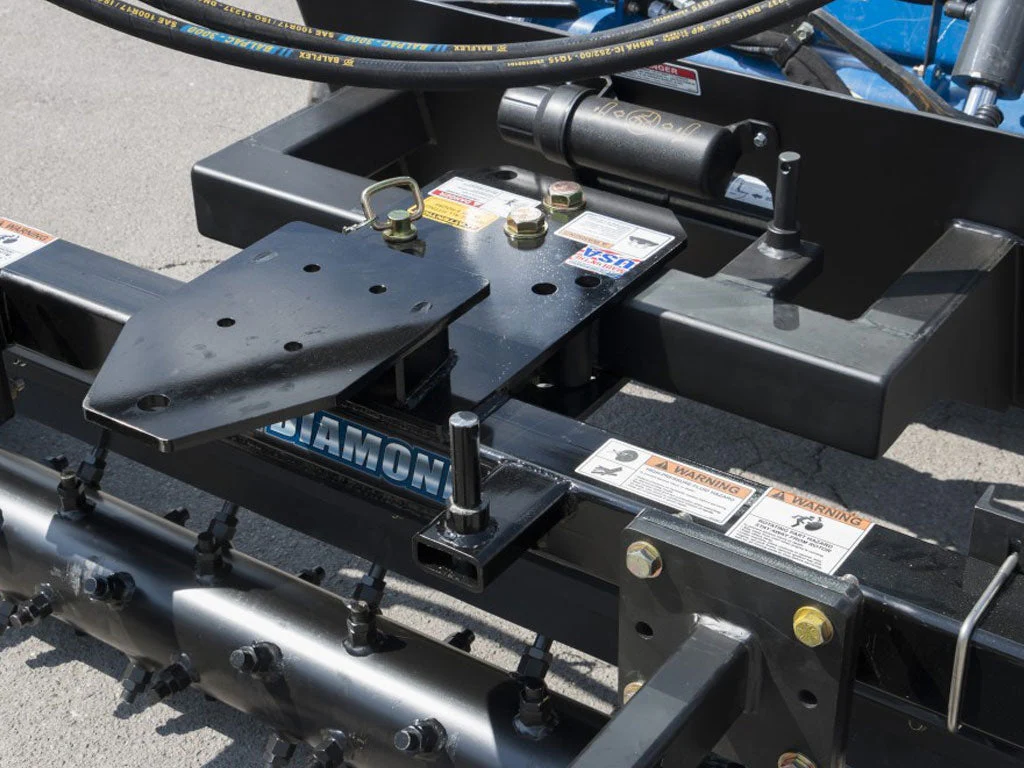

• 5-position, 20-degree angle with manual or hydraulic adjustment.

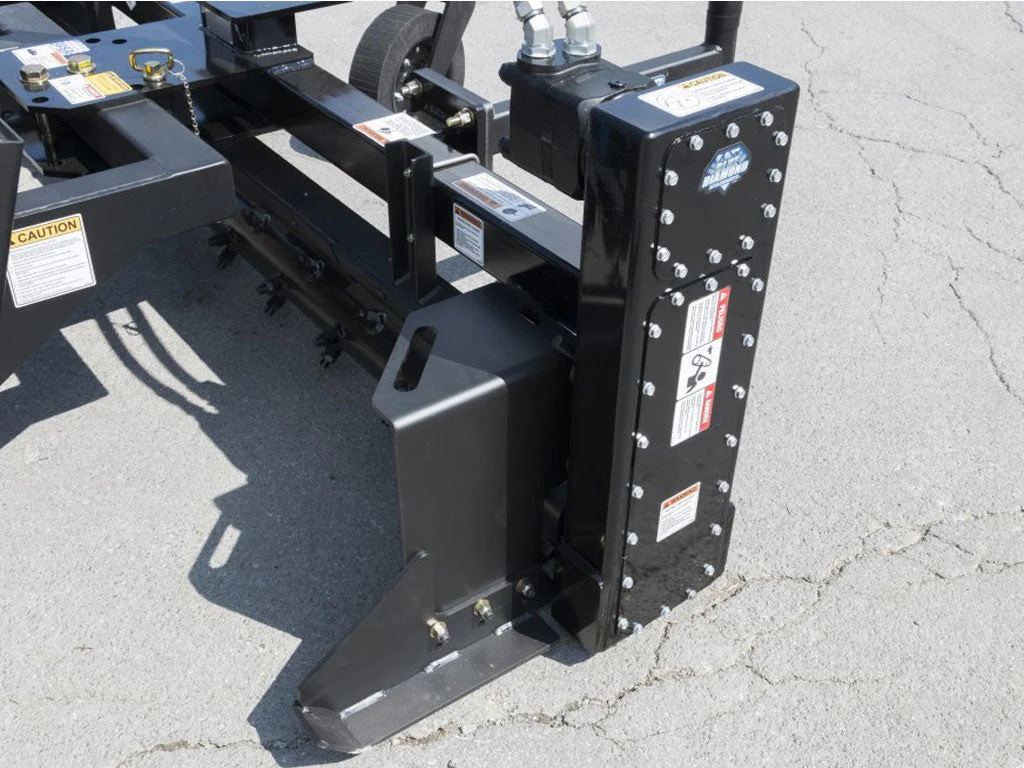

• Optional bolt-on skid shoes add ~30% load capacity over side plates alone.
• Includes 6 mounting options: Universal / Bobcat mounting hydraulic angle units, angle kit, universal control harness hoses and fittings.
• Double struts on the castors for added stability; replaceable teeth hardness rated at HRC 50.
• Case drain line available on request for machines over 25 GPM.
• Note: Configurations are shown with optional skid shoes and replaceable teeth; call for skid shoes.

Benefits

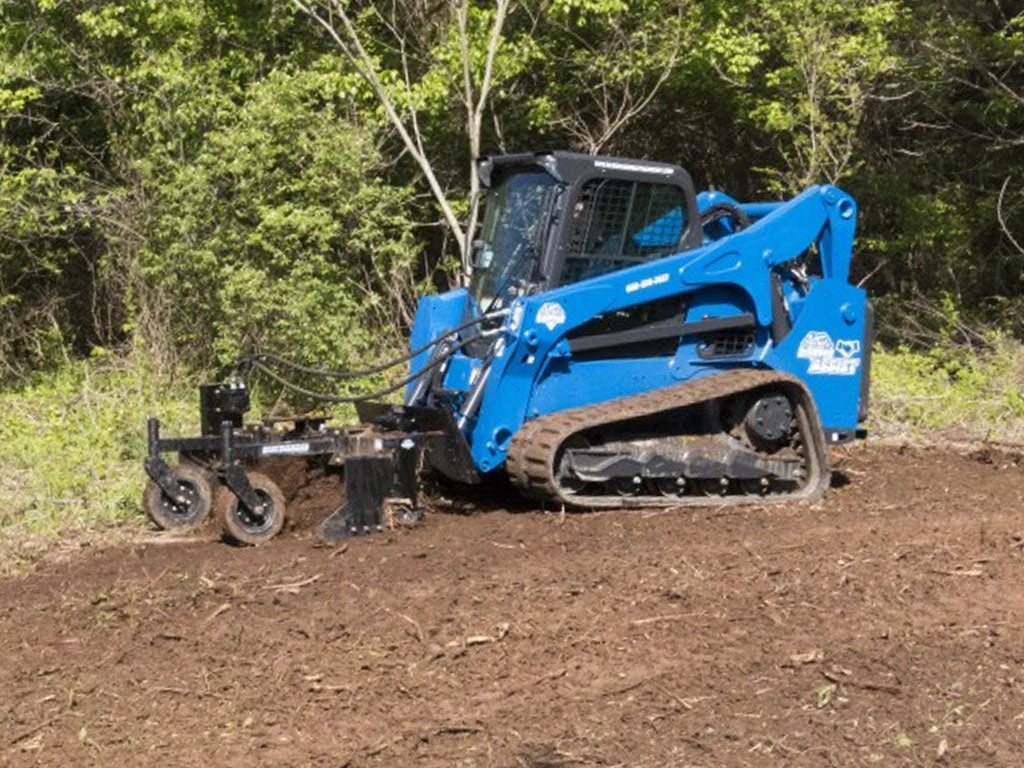

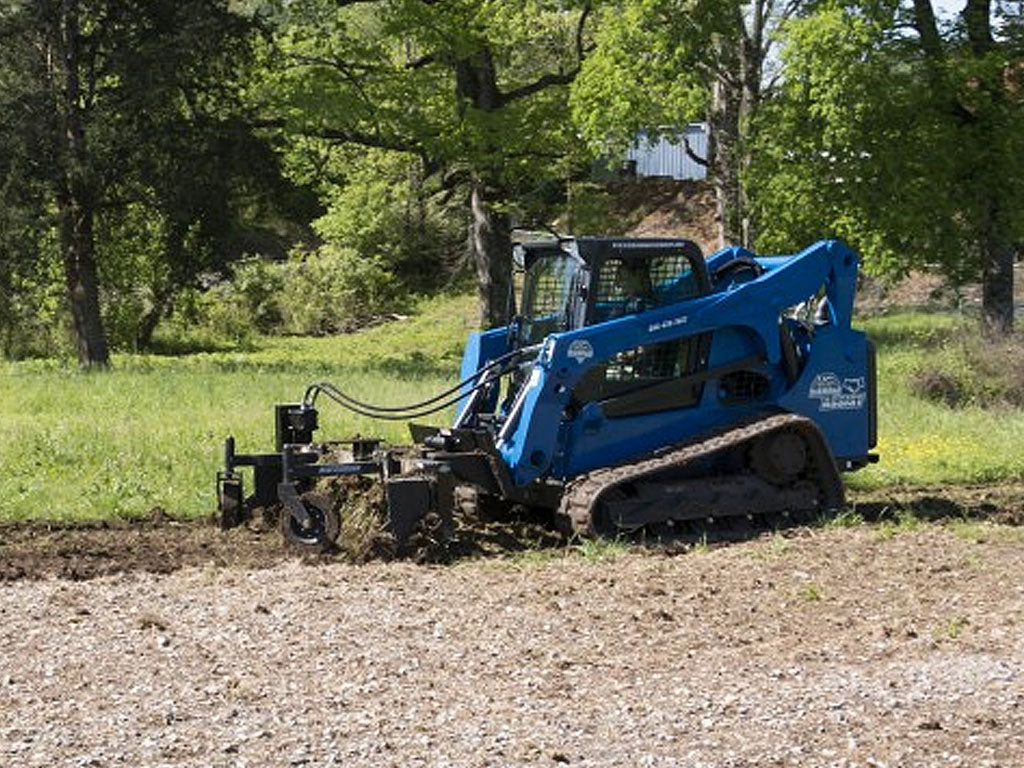

Take on demanding site prep with confidence. The BLUE DIAMOND Extreme Duty Power Rake powers through tough soil and debris, creating a ready seed bed in fewer passes thanks to high torque, a robust drum, and aggressive teeth. Its design prioritizes reliability and serviceability, so maintenance is quick and downtime is minimized.

The motor sits out of the way to maximize working width, making it ideal for larger skid steer deployments while still working smoothly in tighter spaces. Replaceable teeth and optional skid shoes provide practical, cost-effective maintenance and enhanced load capacity on challenging sites.

Who benefits: landscape contractors, rental fleets, municipalities, and any operation tasked with fast, reliable soil conditioning across large areas. Compare this unit to other rakes by its combination of power, durability, and thoughtful features designed for high-usage environments.

Practical tips: pair with machines in the 18–26 GPM range for optimal performance; plan for a case drain if your hydraulic system exceeds 3,000 PSI; consider skid shoes for added stability on uneven ground.

Part Number	Teeth	Working Width (Straight)	Working Width (Angled)	Overall Working Width (Straight)	Weight
132110	Replaceable	72″	66″	82″	1,135 lbs
132112	Fixed	72″	66″	82″	1,085 lbs
132115	Replaceable	84″	78″	78″	1,160 lbs
132117	Fixed	84″	78″	94″	1,110 lbs
132120	Replaceable	96″	90″	106″	1,185 lbs
132122	Fixed	96″	90″	106″	1,135 lbs
