Virnig Hay Handling - Machine Pointed Hay Spears For Skid Steer
Virnig Hay Handling offers a versatile line of skid-steer attachments designed to move round and large square bales with confidence. With removable machine-pointed spears and a universal mount, these hay spears are built for farmers, ranchers, and contractors who value durability and straightforward operation.

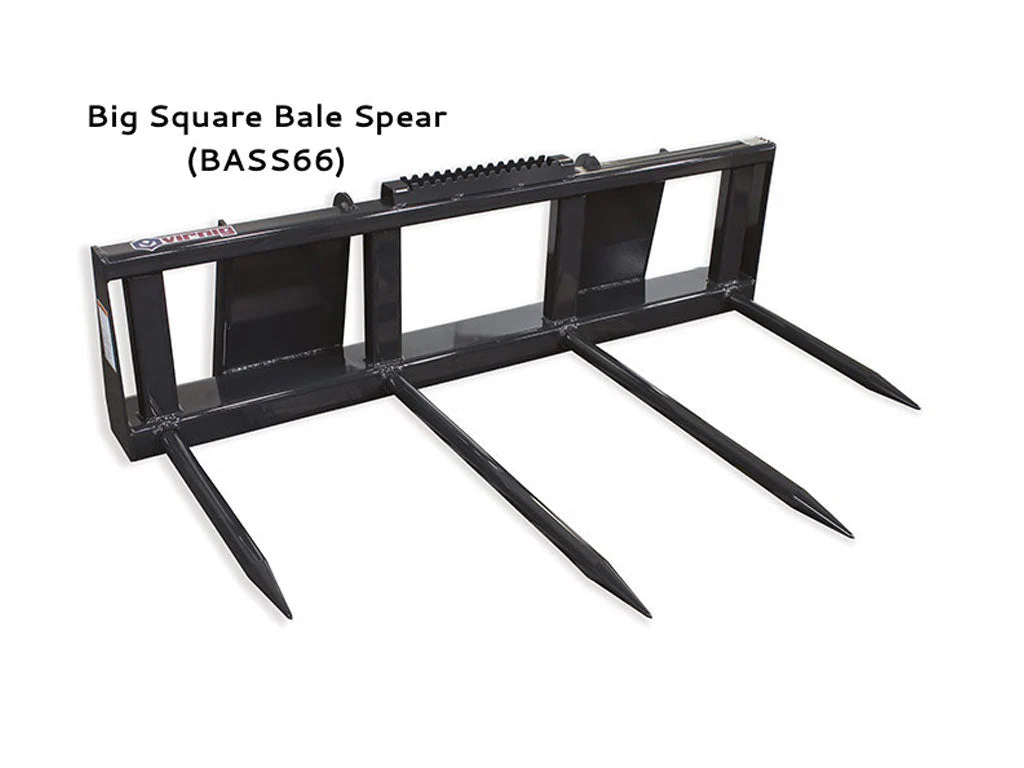

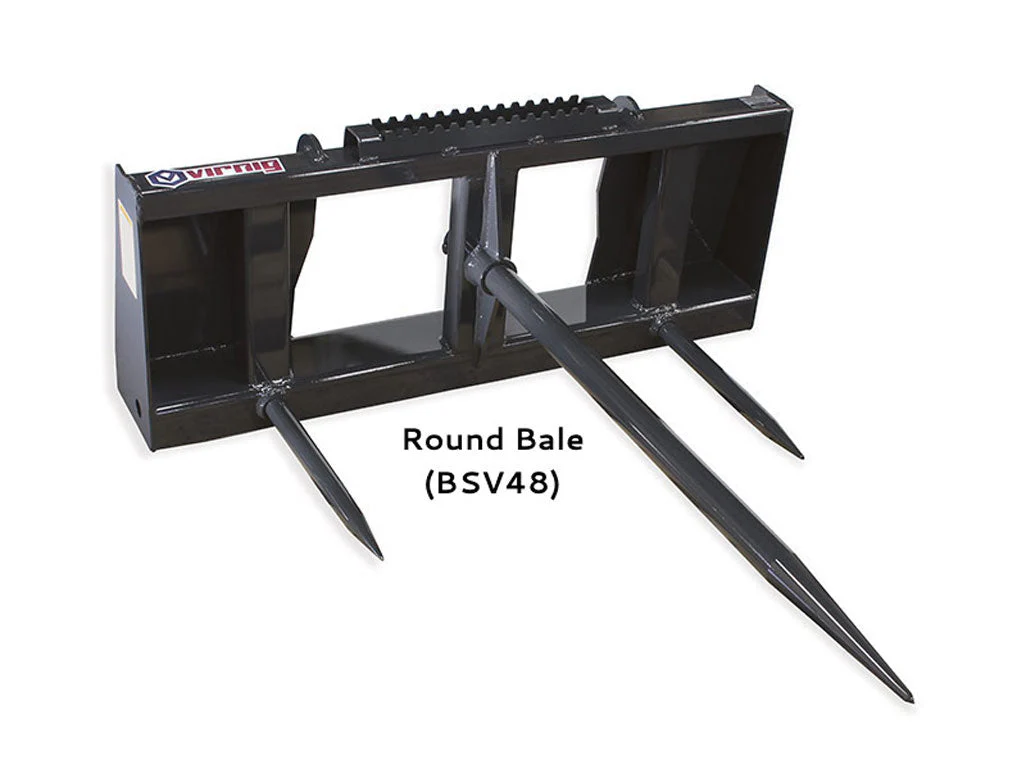

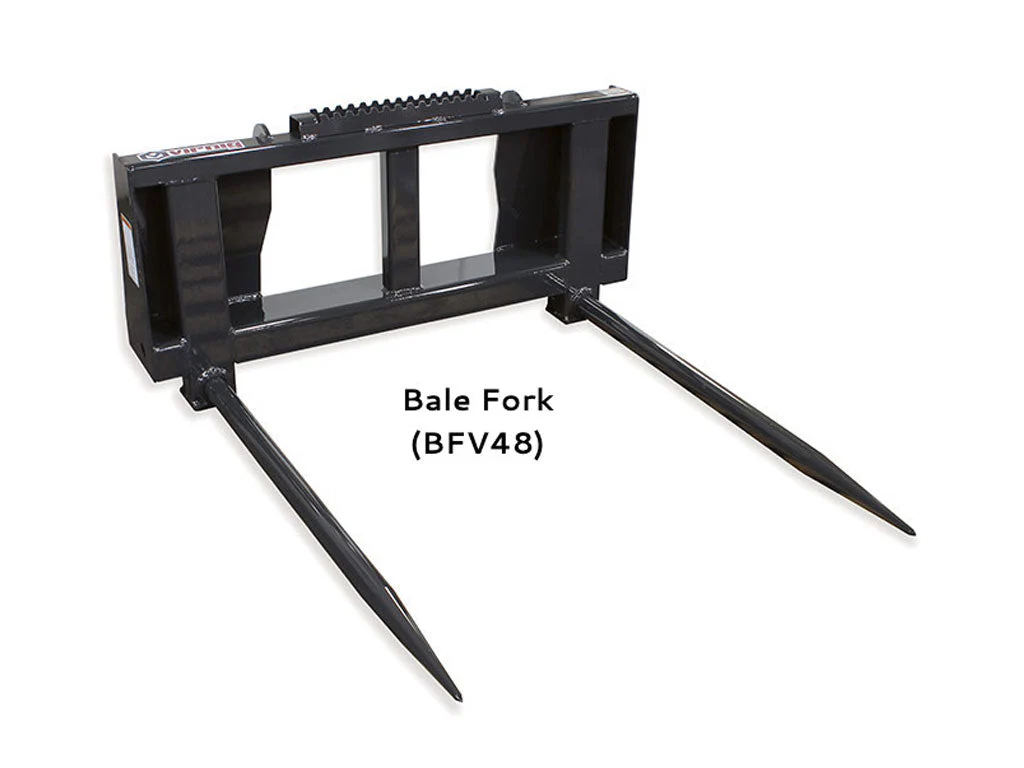

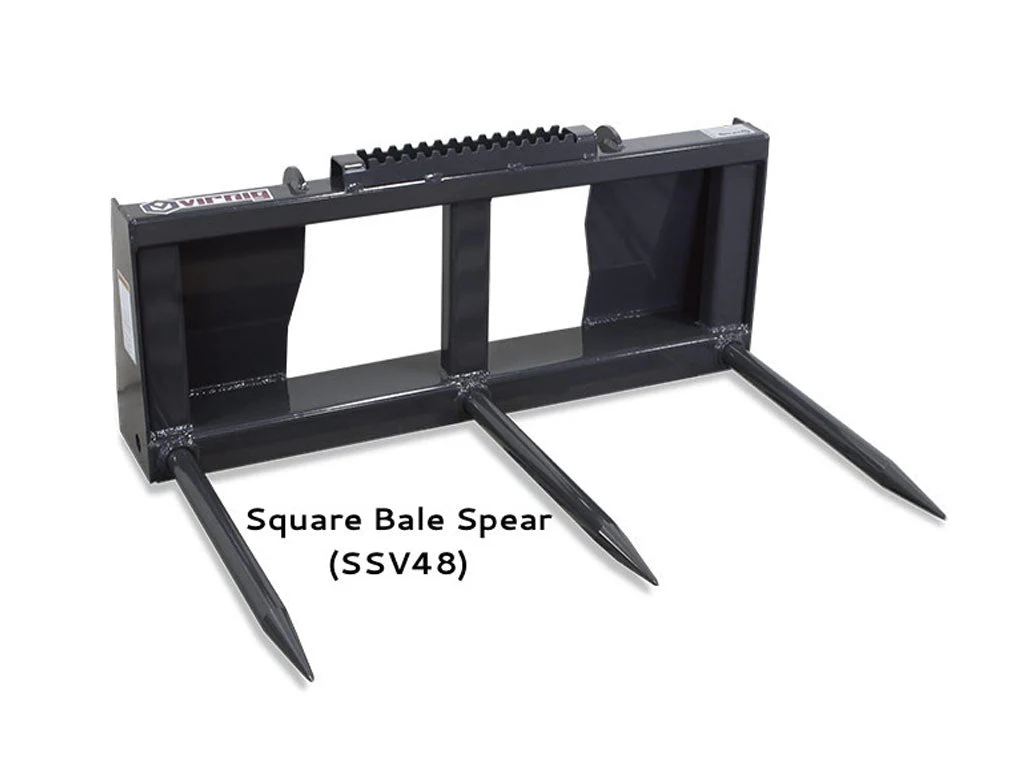

- Model Variants: Five hay handling models—Round Bale Spear (BSV48), Bale Fork (BFV48), Round/Square Bale Combo (CBV48), Square Bale Spear (SSV48), and Big Square Bale Spear (BASS66)—each designed to handle a single bale at a time and to fit most skid steers via a universal mount.
- Durable Spear Construction: Spears and stabilizers machined from 1045 Cold Finished Stress Relieved (CFSR) round stock for strength and consistent performance; machined spears provide a cost-effective alternative to forged options without sacrificing reliability.
- Universal Mount: Built with a universal skid-steer mounting interface to facilitate quick, tool-free changes across compatible loaders.
- Optimized Bale Handling Configurations: Each model combines a specific number of main spears and stabilizers with tailored usable lengths to suit round bales, round/square combos, or large square bales.
- Capacity & Reliability: Rated to handle up to 2000 lbs with the bale against the frame, delivering dependable performance for routine hay handling in barns, fields, and yards.
- Model-Specific Specs: - BSV48: 45.5" frame width; 1 main spear (42.3" usable); 2 stabilizers (17.4" usable); 230 lbs. - BFV48: 45.5" frame width; 2 main spears (42.3" usable); no stabilizers; 270 lbs. - CBV48: 45.5" frame width; 1 main spear (37.8" usable); 3 stabilizers (25.8" usable); 260 lbs. - SSV48: 45.5" frame width; 3 main spears (25.8" usable); 2 stabilizers (25.8" usable); 225 lbs. - BASS66: 66.5" frame width; 2 main spears (37.8" usable); 2 stabilizers (25.8" usable); 310 lbs.
These attachments are ideal for moving hay from field to trailer, staging bales in storage areas, or loading and stacking in barns. The removable spears simplify maintenance and spear replacement, while the varied configurations ensure you match the exact bale size you’re handling—round, square, or oversized. By choosing the right model, you gain precise control, reduced bale damage, and more efficient bale handling day in and day out.
| Model | BSV48 | BFV48 | CBV48 | SSV48 | BASS66 |
| Name | Round Bale Spear | Bale Fork | Bale Combo Spear | Square Bale Spear | Big Square Bale Spear |
| Frame Width (in) | 45.5 | 45.5 | 45.5 | 45.5 | 66.5 |
| Number of Main Spears | 1 | 2 | 1 | 3 | 2 |
| Main Spear Usable Length (in) | 42.3 | 42.3 | 37.8 | 25.8 | 37.8 |
| Main Spear Thickness (in) | 2.0 | 2.0 | 1.75 | 1.75 | 1.75 |
| Number of Stabilizer Spears | 2 | - | 3 | - | 2 |
| Stabilizer Spear Usable Length (in) | 17.4 | - | 25.8 | - | 25.8 |
| Stabilizer Spear Thickness (in) | 1.5 | - | 1.75 | - | 1.75 |
| Weight (lbs) | 230 | 270 | 260 | 225 | 310 |
