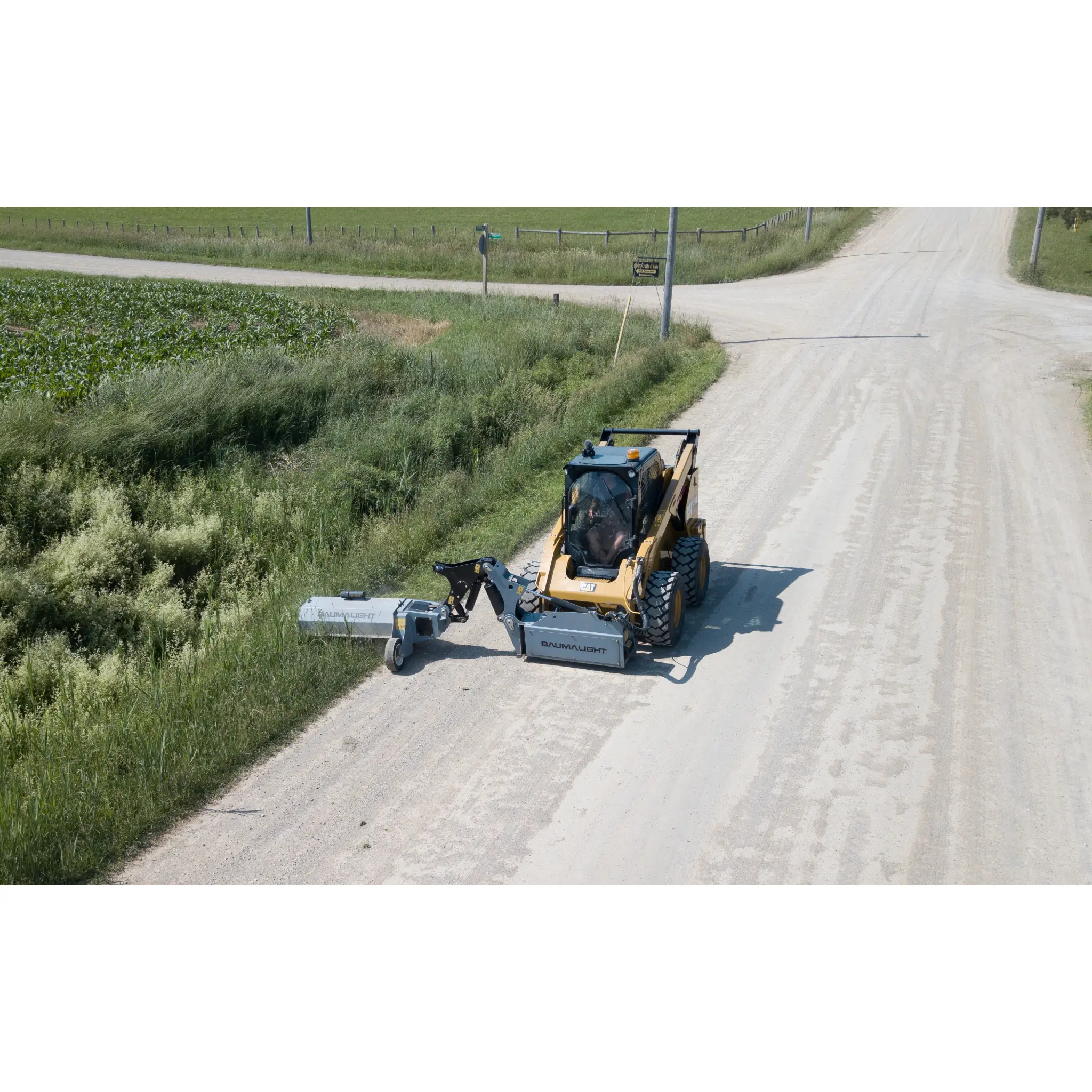

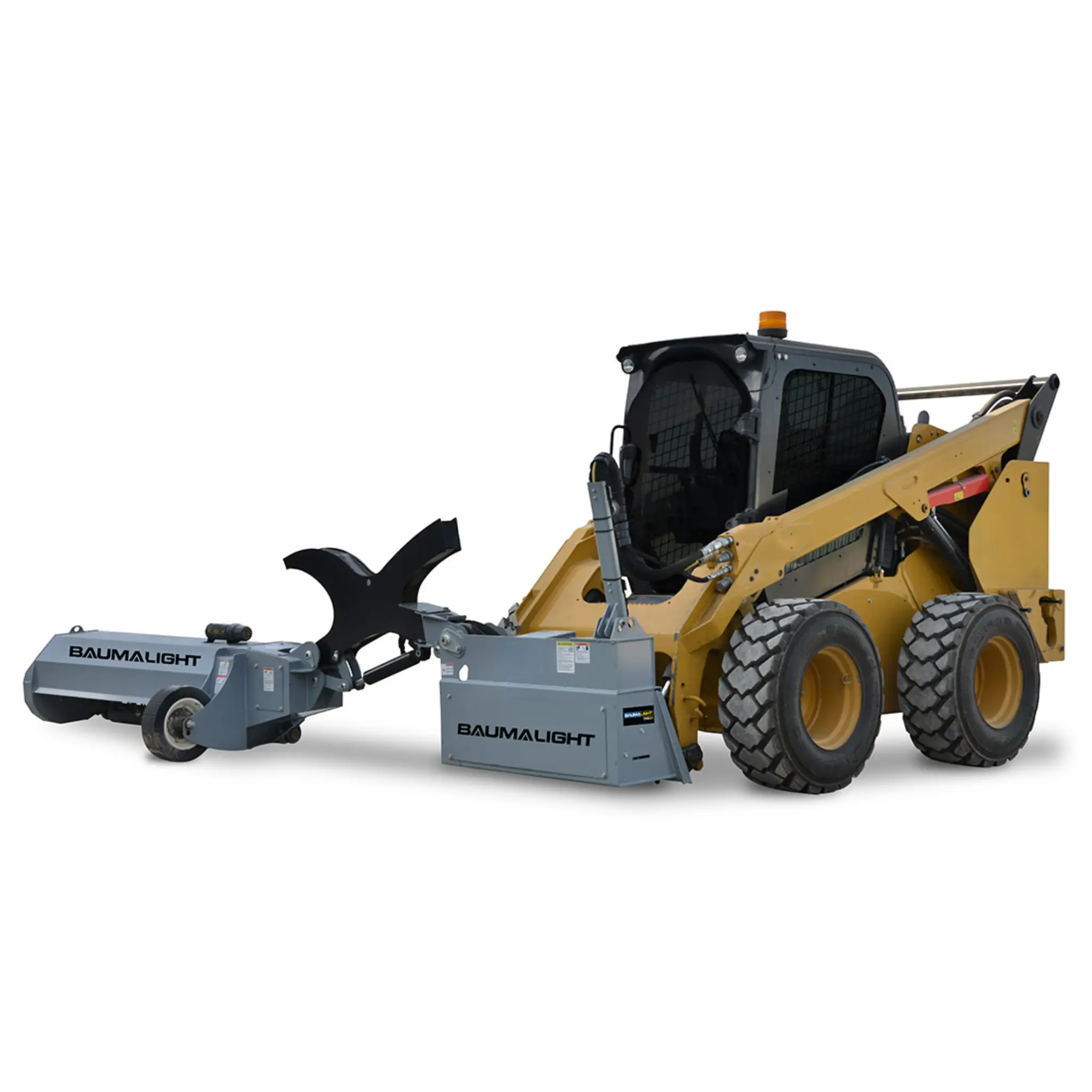

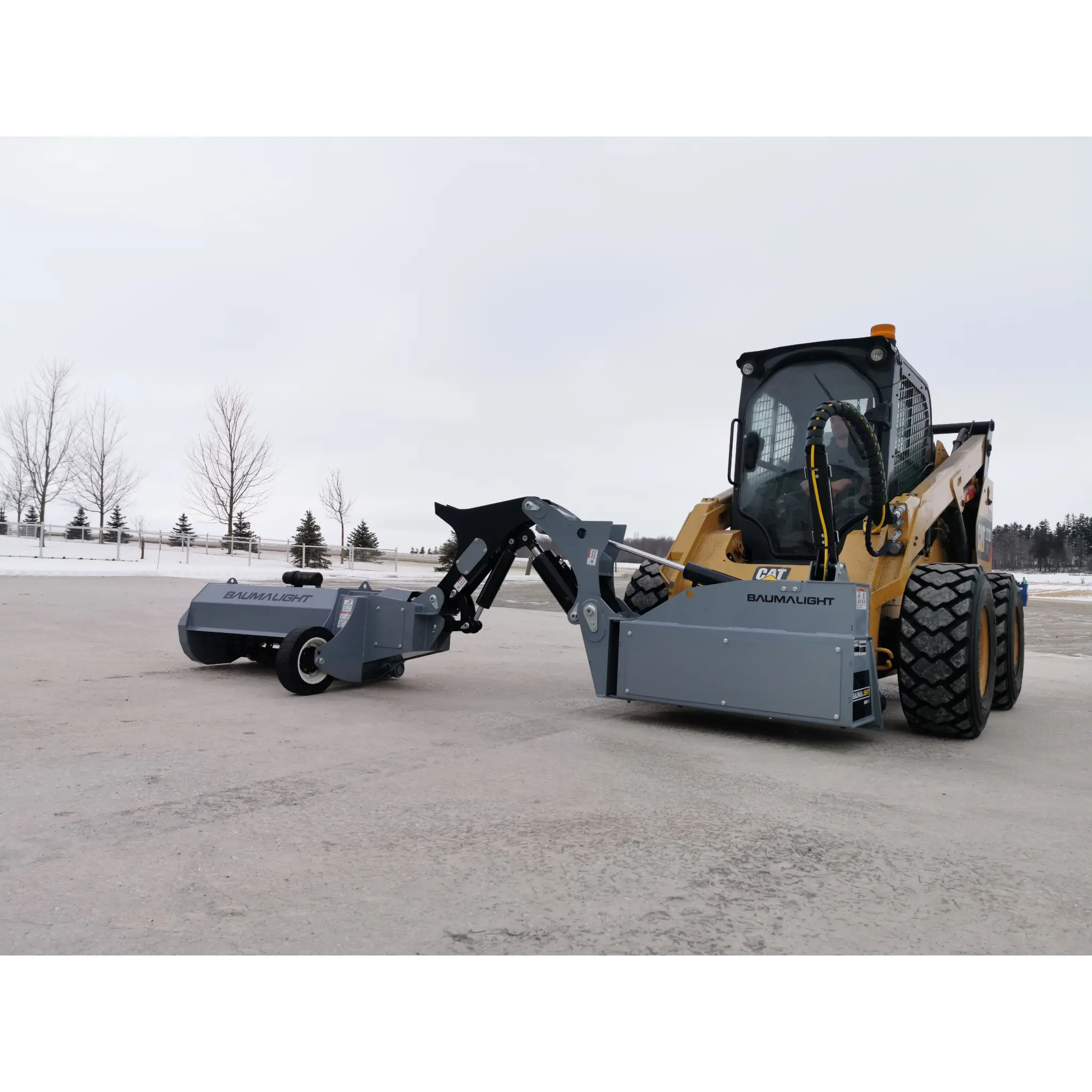

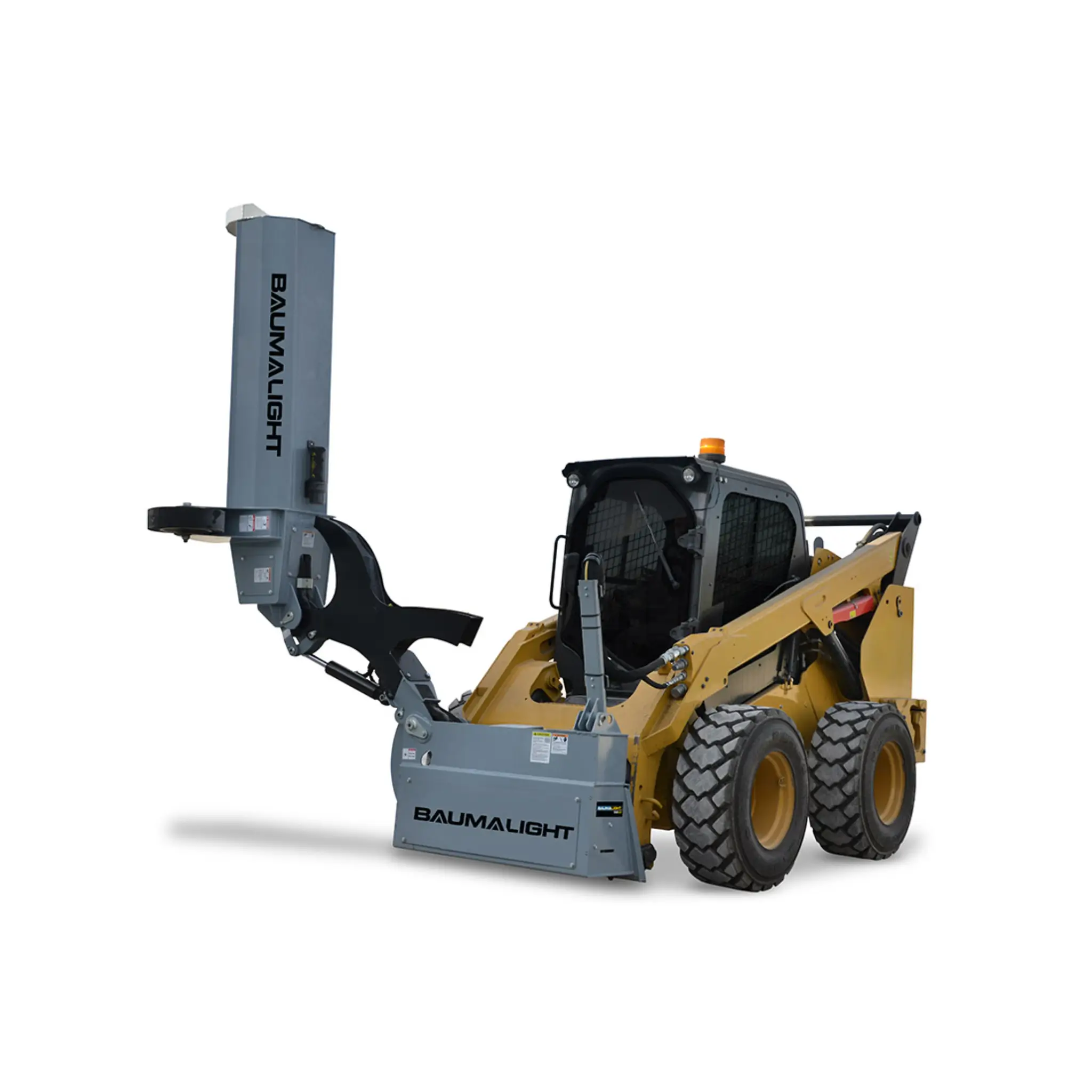

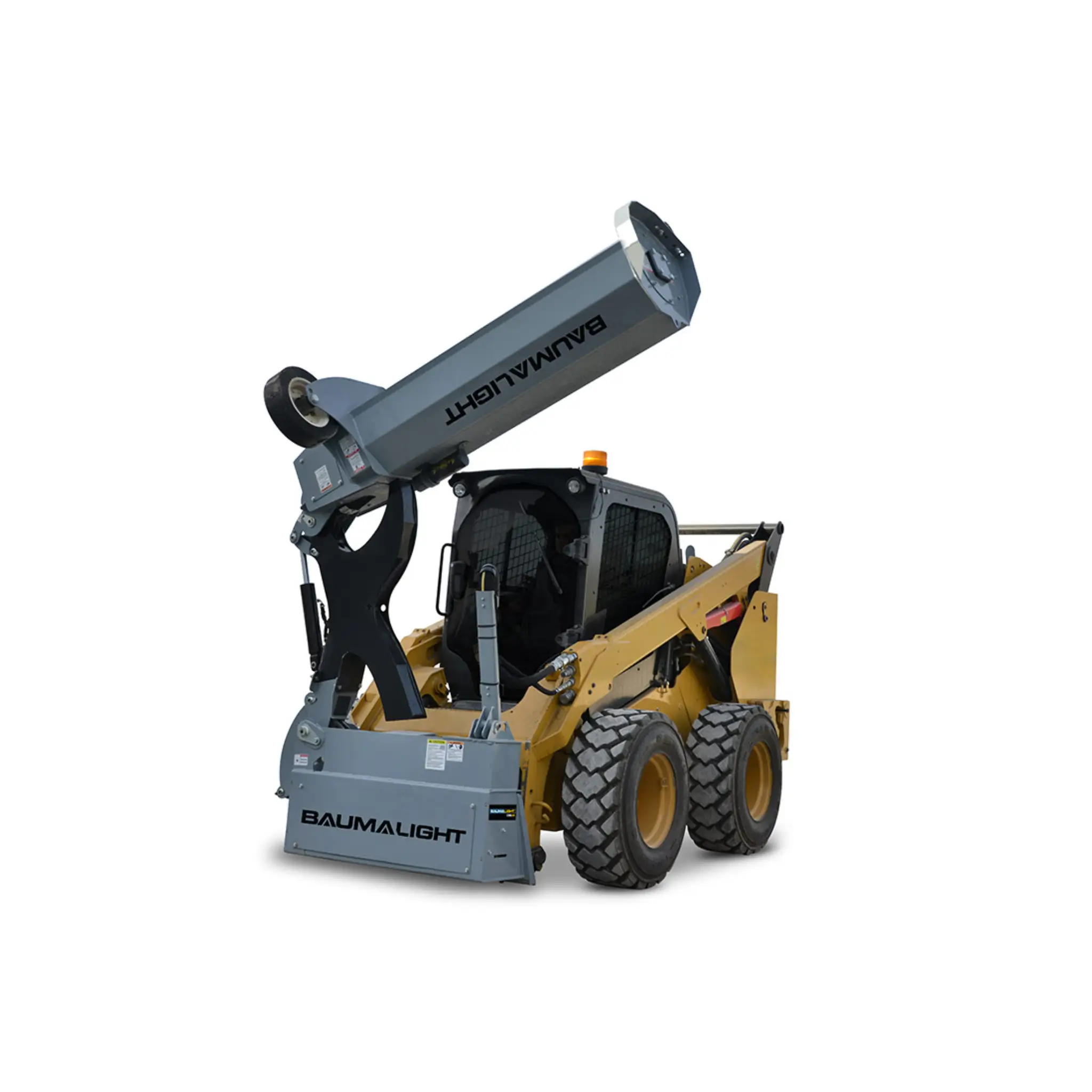

Baumalight SWA560 Boom Mower For Skid Steers

Effortlessly mow and maintain ditches, roadsides, and fence lines with Baumalight's SWA560 Boom Mower for Skid steers. Designed for carriers weighing at least 5,500 lbs, this mower features a curved single-arm boom with a 10-foot reach and a 60" wide head with 200 series flail teeth, handling brush up to 2" diameter. The Boom conveniently folds for easy transport.

Model No.	SWA540	SWA550	SWA560	SWF560	SWF580
Total reach when flat	6 ft	7 ft	10 ft	10 ft	14 ft
Cutting Width	48"	60"	60"	48"	48"
Boom Type	Single Arm	Single Arm	Single Arm	Boom & Stick	Boom & Stick
Type of Blades	Flail	Flail	Flail	Flail	Flail
Minimum Skidsteer weight Warning; not applicable to wheel loaders	4,500 lbs	5,000 lbs	5,500 lbs	6,000 lbs	8,000 lbs
Maximum Skidsteer weight	10,500 lbs	11,000 lbs	12,000 lbs	12,000 lbs	16,000 lbs
Requires Case Drain	Yes	Yes	Yes	Yes	Yes
Hydraulic Hose & Couplers	Hose only	Hose only	Hose only	Hose only	Hose only
Max PSI	4,500	4,500	4,500	4,500	4,500
Motor type	Piston	Piston	Piston	Piston	Piston
Estimated dealer set-up time	6 hours	6 hours	6 hours	8 hours	9 hours
No. of blade clusters F2000(Standard)	38	48	48	38	38
No. of blade clusters F3000(Optional)	76	96	96	76	76
Shipping weight	1775 lbs	1900 lbs	1750 lbs	1650 lbs	1800 lbs
