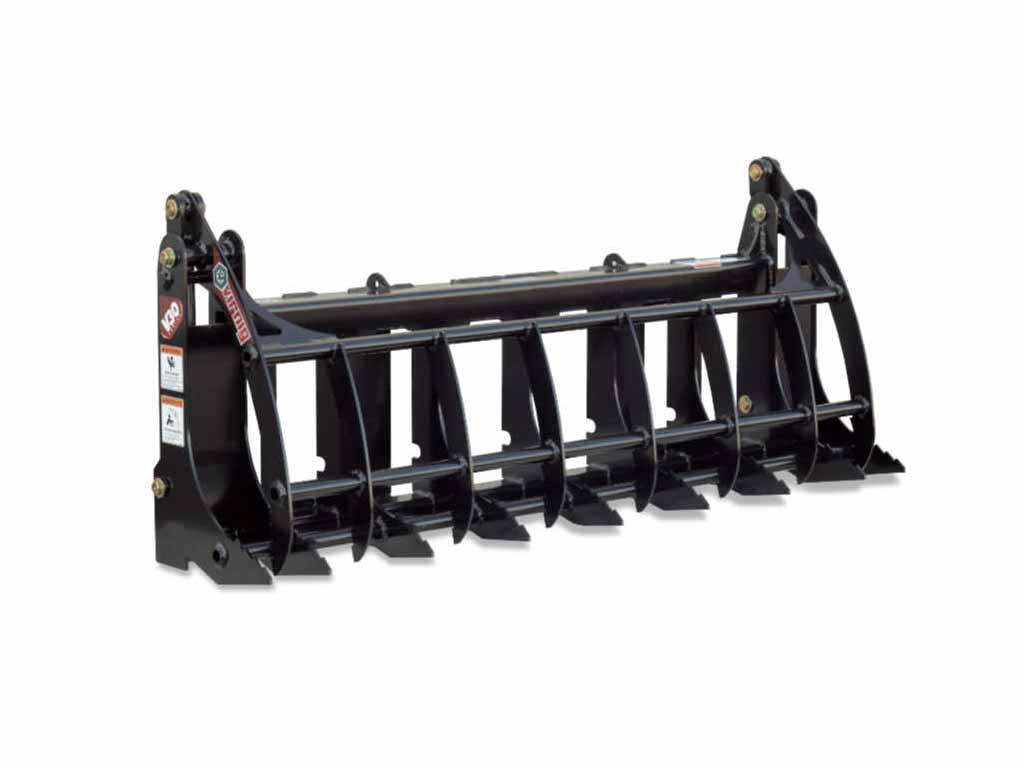

Virnig V30 Root Rake Grapple for Tractor

The Virnig V30 Root Rake Grapple for Tractor is a purpose-built attachment that blends a rugged root rake with a powerful grapple, designed for tractors and small skid steer loaders to tackle brush, debris, and loose material with ease. Its forward and reverse operation helps drag material into clean, orderly piles, speeding up cleanup on job sites and properties.

• Models and Widths: URG54-CT (56.5" wide), URG60-CT (61.5" wide), URG66-CT (67.5" wide) to fit a range of compact machines
• AR400 Tines: All tines use AR400 steel (0.25" thick) for exceptional strength and durability under demanding use
• NitroSteel Cylinder Rods: Rugged rods engineered for longer service life in repetitive lifting and dragging
• Teflon-Coated Bushings: Smooth, low-friction pivots that reduce wear across all joints
• Universal Skid Steer Mounting: Quick-attach compatibility for common skid steer frames, enabling fast tool swaps
• Included Hydraulics: 90" hoses with 1/2" male and female couplers included for straightforward setup
• Grapple Jaw Opening: A generous 35.5" opening to grab larger chunks and irregular materials
• Weight and Capacity: 255–320 lb weight range depending on model; recommended loader capacity under 1,500 lb
• Dimensions and Tine Spacing: Varies by model—7, 8, or 9 bottom tines with bottom spacing of 10.5", 9.8", or 9.1" and grapple-jaw spacing of 11.2", 9.8", or 9.2" (plus overall widths of 56.5", 61.5", 67.5")
• Material and Build: AR400 plate construction (150,000 PSI minimum yield) delivers lasting rigidity in tough debris and root-clearing tasks
• Cylinder and Pin Details: 2.0" bore, 6.0" stroke cylinders; 1.0" pins and hinge pins support robust articulation

The V30 series was designed for TRACTORS and SMALL SKID STEER LOADERS. Though this is Virnig’s standard-duty line, the V30 Series often outperforms other brands’ heaviest skid steer attachments, delivering reliable performance across everyday property maintenance, land clearing, and landscaping workflows.

MODEL	URG54-CT	URG60-CT	URG66-CT
Overall Width (Inches)	56.5	61.5	67.5
Height: Overall / Bucket (Inches)	27.9 / 24.9
Overall Depth (Inches)	16.6
Number of Bottom Tines	7	8	9
Space Between Tines / Bottom (Inches)	4.8 / 10.5	4.8 / 9.8	4.8 / 9.1
Space Between Tines / Grapple Jaws (Inches)	7.8 / 11.2	7.3 / 9.8	7.0 / 9.2
Tine Thickness (Inches)	0.25*
Cylinder Bore / Stroke (Inches)	2.0 / 6.0
Cylinder Pins / Hinge Pins Diameter (Inches)	1.0
Grapple Jaw Opening (Inches)	35.5
Approximate Weight (Pounds)	255	300	320
Recommended Loader Capacity	Less than 1,500 pounds
