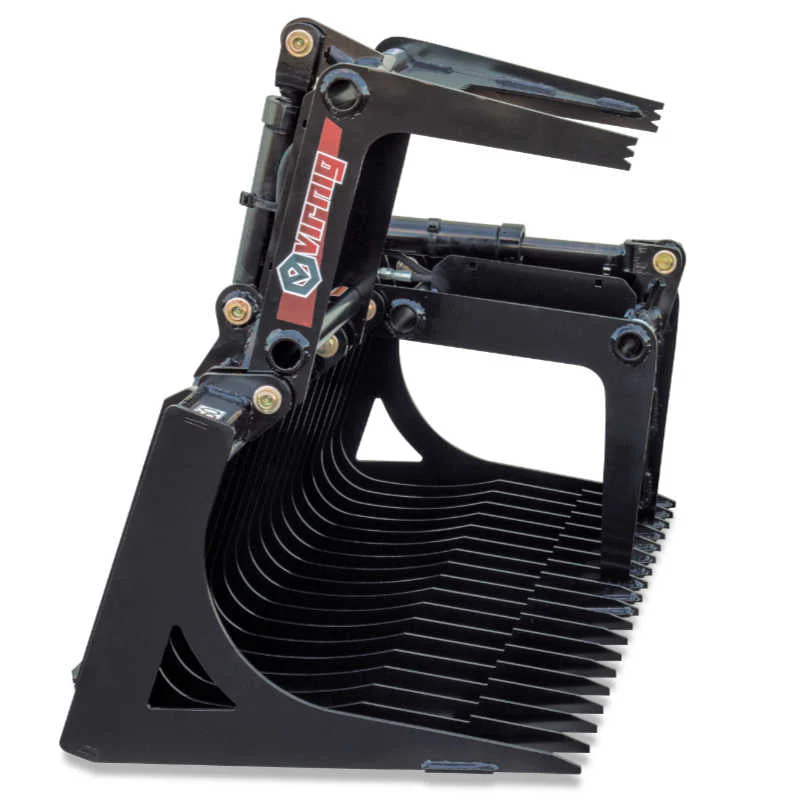

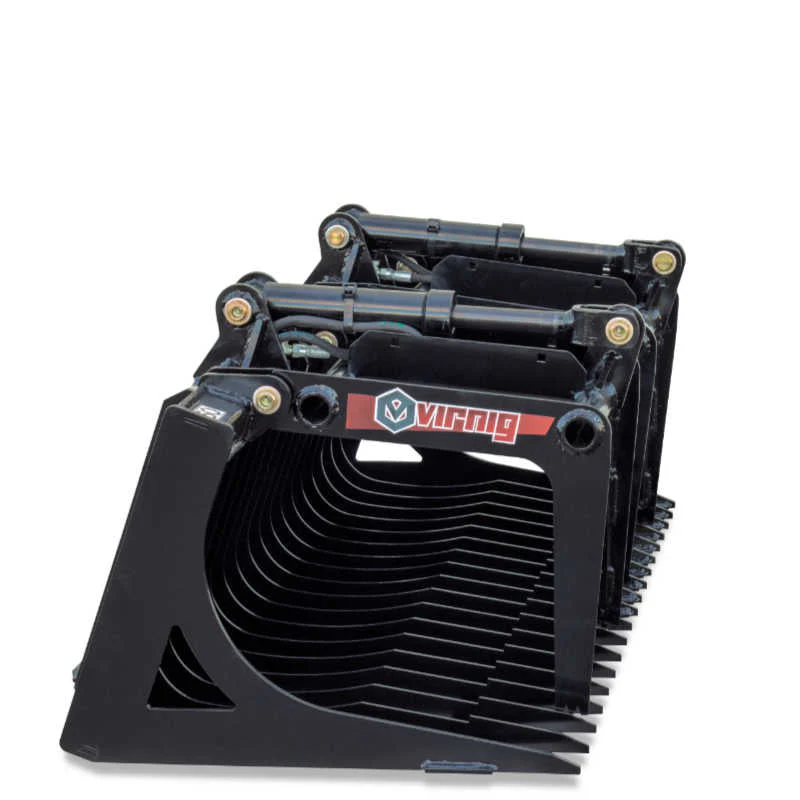

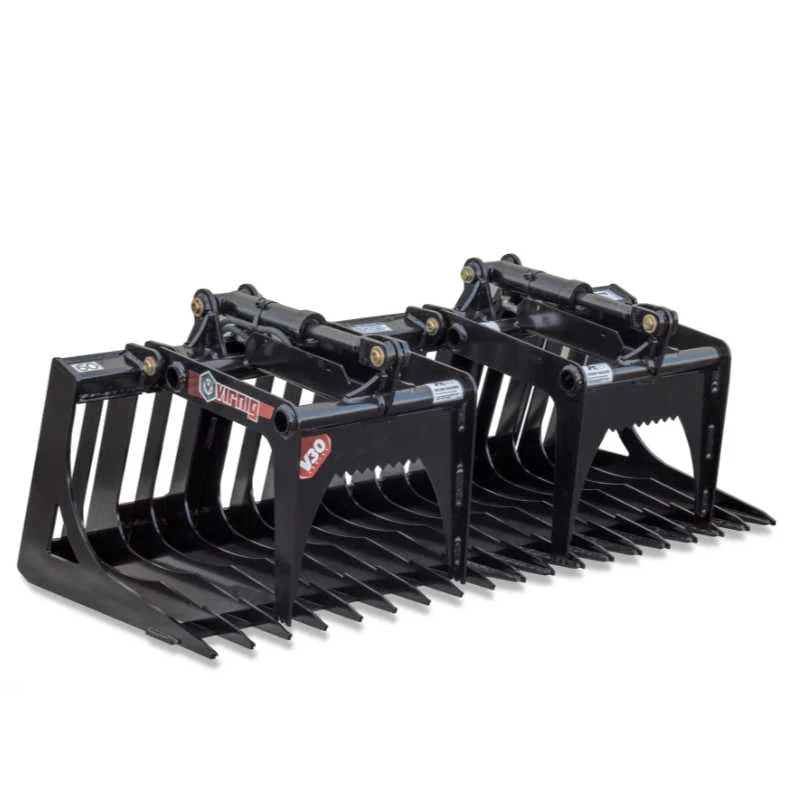

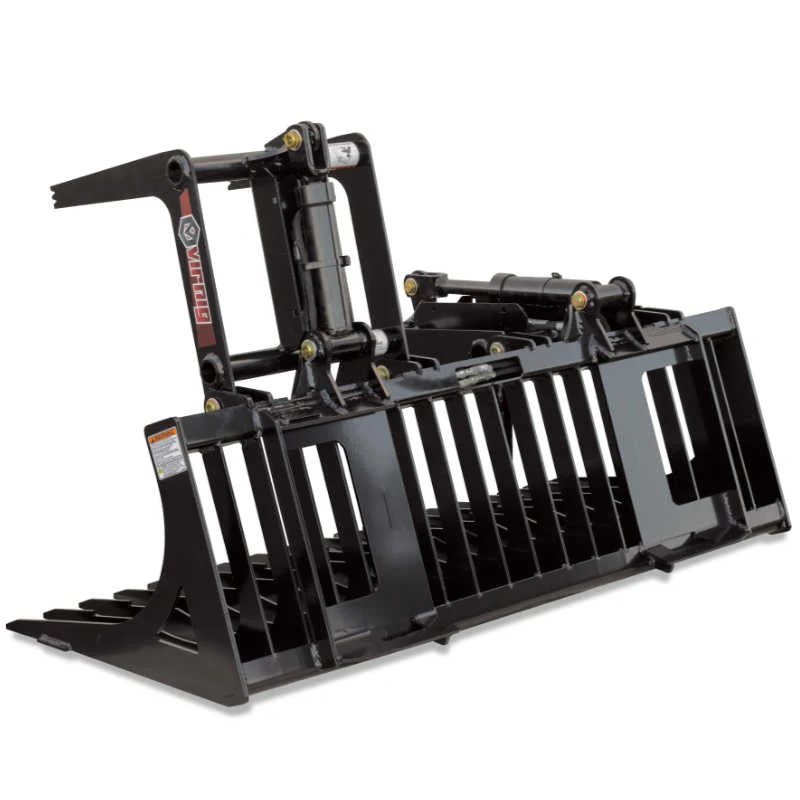

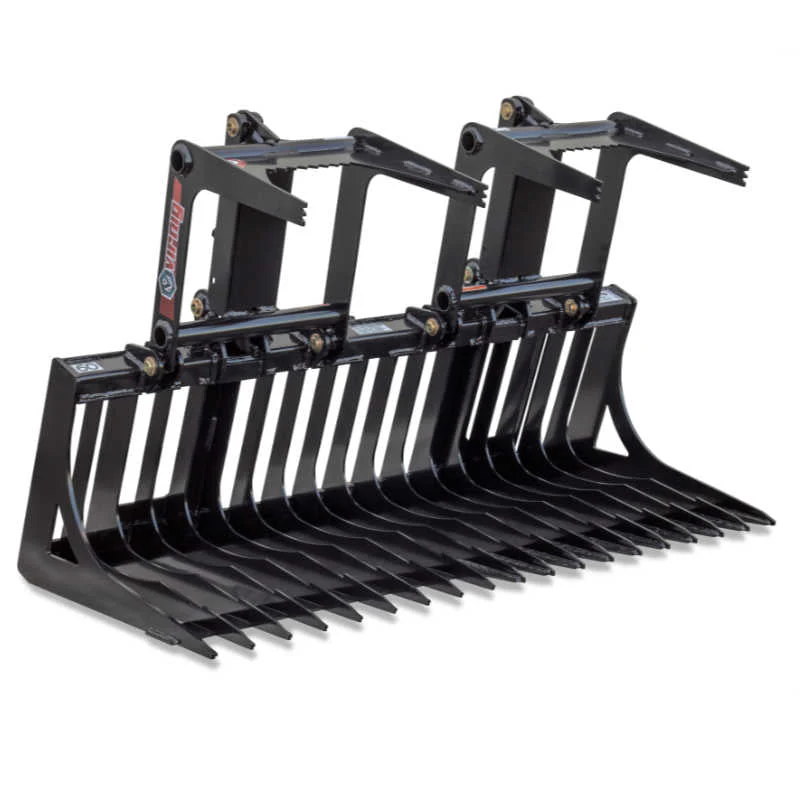

Virnig V30 Skeleton Rock Grapple for Compact Tractor
The Virnig V30 Skeleton Rock Grapple for Compact Tractor is a two-cylinder, independent grapple designed to help small loaders efficiently grab and move rocks and debris. With universal skid-steer mounting and a lighter, more rigid build, it’s built for durability and practical use in tight spaces.
- Universal Skid Steer Mounting: Compatible with common skid steer quick-attach systems for straightforward installation on compact tractors.
- Two-Cylinder Independent Grapple: Separate hydraulic cylinders provide smooth, coordinated opening and closing for precise rock handling.
- 25% Lighter Than Previous Version: Lighter weight increases payload capacity on compact loaders without sacrificing strength.
- One-Piece 1/4" Grade 50 Steel Tines: All tines are a single piece from tip to top brace for enhanced rigidity and longevity.
- Hybrid Side Plates: Secure rocks while allowing handling material wider than the grapple itself.
- 3.1" Tine Spacing: Narrow spacing optimizes rock pickup and minimizes dirt intrusion during digging.
- Rock Dam Ridge & Notches: Raised center ridge and tip notches keep rocks in place while digging and loading.
- Fully Gusseted Tine Tips: Additional reinforcement at the tips to resist impact and wear.
- NitroSteel Cylinder Rod & Teflon Bushings: Durable hydraulics with low-friction maintenance for smooth operation.
- Optional Cylinder Guards & Optional 90" Hoses with 1/2" Fittings: Add-ons to protect the cylinders and extend hydraulic reach when needed.
- Size Options & Build Specs: Available widths range from 47.9" to 74.1" (SRGV48-CT to SRGV72-CT); weighs 345–425 lbs and uses 0.25" tines with 0.375" side plates, designed for loader capacity under 1,500 lbs.
- Material & Construction: Made from Grade 50 steel (50,000 psi minimum yield strength) for rugged performance in rocky environments.
- Shipping & Availability: In-stock items typically ship in 3–5 days; non-stock items may take 4–6 weeks.
This attachment is ideal for landscapers, small farms, rental fleets, and municipalities needing a reliable, efficient tool to pull rocks, separate soil, and move debris with a compact tractor. The geometry—tight tine spacing, rock dam, and robust gusseting—delivers focused rock-picking power while minimizing dirt pickup, helping you complete jobs faster with less clean-up. With versatile mounting, optional guards, and durable components, it’s built to perform in demanding conditions and provide long-term value.
| MODEL | SRGV48-CT | SRGV54-CT | SRGV60-CT | SRGV66-CT | SRGV72-CT |
| Overall Width (Inches) | 47.9 | 54.3 | 60.9 | 67.5 | 74.1 |
| Height: Overall / Bucket (Inches) | 22.9 / 19.0 | ||||
| Depth: Overall / Inside (Inches) | 29.0 / 23.5 | ||||
| Number of Tines (With Sides) | 15 | 17 | 19 | 21 | 23 |
| Space Between Tines (Inches) | 3.1 | ||||
| Tine Thickness (Inches) | 0.25* | ||||
| Side Plate Thickness (Inches) | 0.375* | ||||
| Grapple Jaw Opening (Inches) | 28.7 | ||||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | ||||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 | ||||
| Approximate Weight (Pounds) | 345 | 365 | 385 | 405 | 425 |
| Recommended Loader Capacity | Less than 1,500 pounds | ||||
