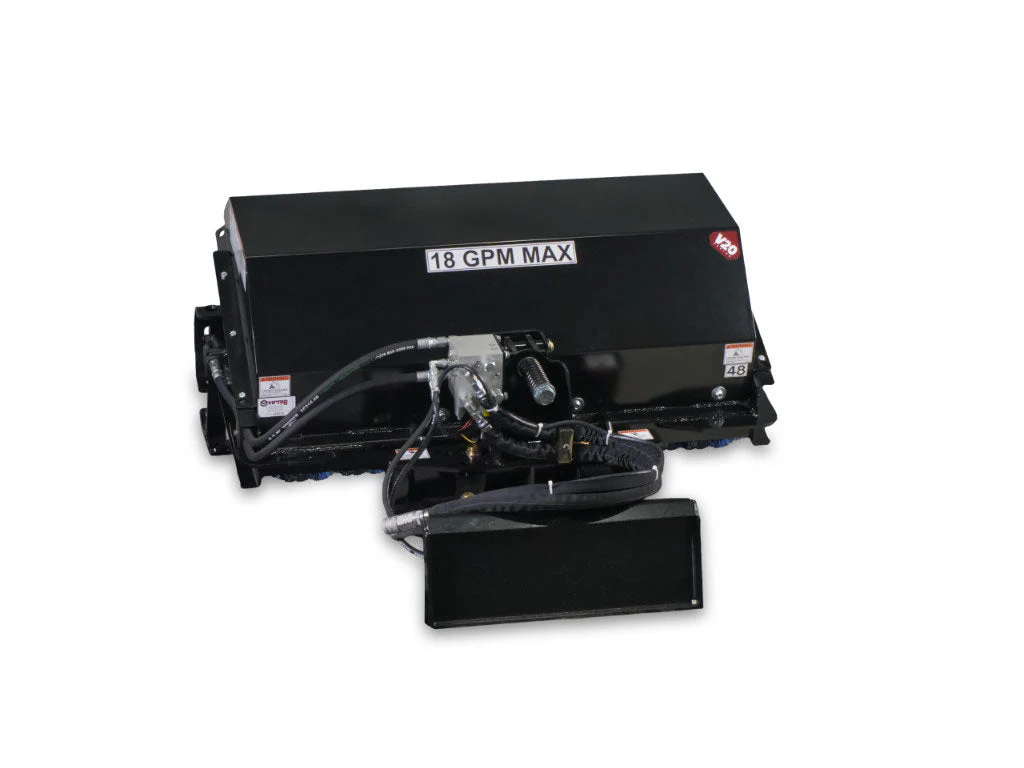

Virnig V20 Angle Broom For Mini Skid Steer
The Virnig V20 Angle Broom for Mini Skid Steer is a purpose-built sweeping attachment designed to help you keep dirt, snow, and debris under control on small to mid-size machines. It’s ideal for job sites, parking lots, and roadways where precise, reliable brushing is essential.
- Available Widths: 48" and 60" to match common mini skid steer configurations for efficient coverage
- Power & Drive: Direct-drive Eaton® motor with a recessed, guarded design for protection and low-maintenance operation
- Self-Centering Swing Linkage: Automatically centers the broom when angled, delivering consistent sweeps across surfaces
- Durability & Bearings: Heavy-duty 1.25" greasable bearings stand up to tough debris and frequent use
- Wafers & Maintenance: Standard poly/wire wafers; wafers replace easily without disconnecting hydraulic hoses to minimize downtime
- Protection & Storage: Flip-down stands shield bristles during storage, extending broom life
- Angle Control: Optional hydraulic angle control lets you adjust the broom angle from the cab for quick, in-field changes
- Performance & Specs: Sweeping Width (Straight): 48" or 60"; Sweeping Width (Full Angle): 42.8" or 53.5"; Max Broom Angle: 28°; Number of Wafers: 23 (48" model) or 29 (60" model); Approx. Weight: 4,951 lbs (48" model) or 5,301 lbs (60" model)
- Compatibility: Compatible with most skid steer loaders, making it a versatile tool for a range of jobs
The V20’s combination of a robust direct-drive motor, an automatic self-centering linkage, and easily replaceable wafers means you get dependable performance with reduced maintenance and downtime. Its reinforced construction, protective motor housing, and bristle-protecting stands are built to endure daily use in challenging environments—from gritty construction yards to snowy lots. For operators seeking convenience, the optional hydraulic angle control adds cab-adjustable precision, so you can tailor the broom angle on the fly without leaving the cab. Whether you’re clearing a parking lot, maintaining a roadway shoulder, or keeping a worksite clean, the Virnig V20 Angle Broom is engineered to deliver consistent, efficient sweeping where you need it most.
| MODEL | CAB48 | CAB60 |
| Sweeping Width, Straight (Inches) | 48.0 | 60.0 |
| Sweeping Width, Full Angle (Inches) | 42.8 | 53.5 |
| Loader Track Width Coverage, Full Angle (Inches) | 38.0 | 48.0 |
| Overall Width (Inches) | 54.3 | 66.3 |
| Overall Width, Full Angle (Inches) | 58.5 | 68.5 |
| Overall Height / Depth, Straight (Inches) | 27.7 / 56.9 | 27.7 / 56.9 |
| Max Broom Angle (Degrees) | 28 | 28 |
| Number of 26 Inch Diameter Wafers | 23 | 29 |
| Recommended Flow Rate (GPM) | 10-18 Standard Flow Only | 10-18 Standard Flow Only |
| Approximate Weight (Pounds) | 4951 | 5301 |
| Recommended Loader Capacity | Greater than 500 pounds |
Greater than 500 pounds
|
