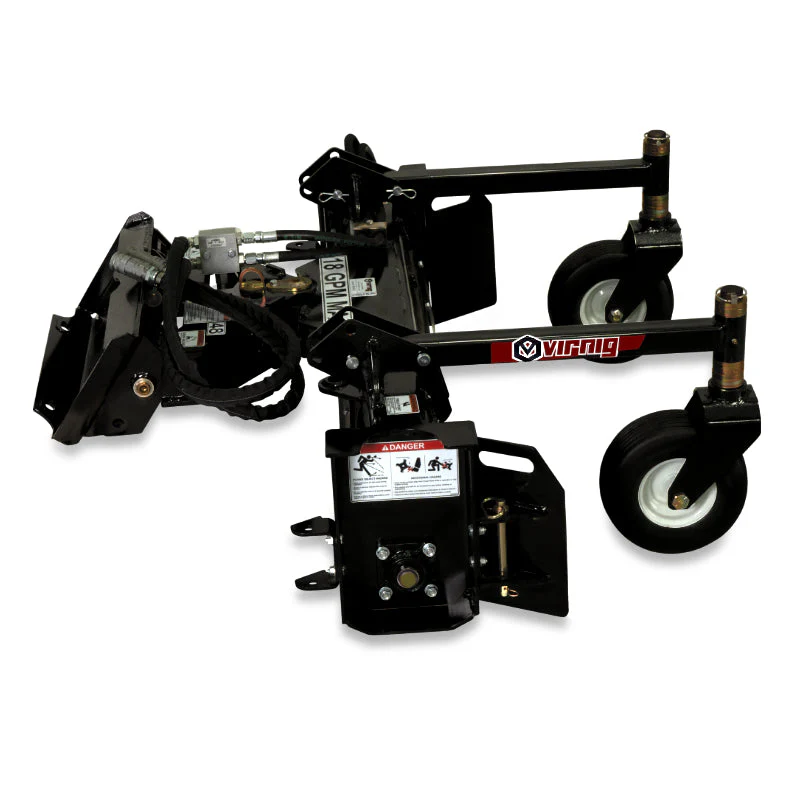

Virnig v20 Power Rake for Mini Skid Steer
Virnig v20 Power Rake for Mini Skid Steer
The Virnig v20 Power Rake for Mini Skid Steer is a purpose-built attachment designed for landscape professionals and site crews who need precise, efficient soil grading and debris removal in tight spaces. Available in 48" or 60" widths, it delivers consistent ground contact and a smooth finish on varied terrains.
- Two Working Widths: CPR48 (48" rake) and CPR60 (60" rake) with corresponding full-angle widths of 44" and 54.2" to suit small and larger areas.
- Bi-Directional Operation: Full forward or reverse maneuvering for efficient grading without repositioning the machine.
- Reversible & Removable End Plates: Easy edge shaping, maintenance, and quick field adjustments.
- Angle Flexibility: Rake can be angled up to 25° left or right for precise grading along contours and edges.
- Guarded Motor & Floating Design: Safe operation with a floating mechanism that maintains constant contact for a smooth, even finish across uneven surfaces.
- Carbide Tip Teeth: Durable cutting teeth that stand up to gravel, rubble, and compacted soil for longer service life.
- Drum Diameter: 7" drum provides robust material engagement for effective soil and debris removal.
- Teeth Count: 62 teeth on the CPR48 and 78 teeth on the CPR60, balancing aggressiveness with surface finish quality.
- Overall Dimensions: CPR48 — 56" wide, 22.2" tall, 52.6" deep; CPR60 — 68" wide, 22.2" tall, 52.6" deep.
- Weight & Loader Requirement: Approximately 5,201 lbs (CPR48) or 5,651 lbs (CPR60); recommended loader capacity greater than 515 lbs.
- Flow Requirements: Compatible with 10–18 GPM hydraulic systems (standard flow).
Designed to tackle seedbed preparation, gravel leveling, and debris removal with predictable results, the Virnig v20 Power Rake helps you achieve a uniform surface faster, reduces manual grading effort, and improves seed germination conditions by creating a consistent, well-graded base. Its bi-directional operation, adjustable rake angle, and floating down-pressure design make it a versatile tool for landscaping, road work, and big-yard renovations where precision matters.
| MODEL | CPR48 | CPR60 |
| Raking Width (Inches) | 48.0 | 60.0 |
| Raking Width at Full Angle (Inches) | 44.0 | 54.2 |
| Overall Width (Inches) | 56.0 | 68.0 |
| Overall Height (Inches) | 22.2 | 22.2 |
| Overall Depth (Inches) | 52.6 | 52.6 |
| Drum Diameter (Inches) | 7.0 | 7.0 |
| Number of Teeth | 62 | 78 |
| Float Link Angle (Degrees) | 22 | 22 |
| Max Rake Angle (Degrees) | 25 | 25 |
| Recommended Flow Rate (GPM) | 10-18 Standard Flow Only | 10-18 Standard Flow Only |
| Approximate Weight (Pounds) | 5201 | 5651 |
| Recommended Loader Capacity | Greater than 515 pounds | Greater than 515 pounds |
